Details :
Specifications:
1) Sizes: 2 - 20"
2) Pressure class: 150 - 2, 500Lb.
3) Suitable temperature: -28 ~ 425 Deg. C
4) Suitable medium: Water, steam, oil products, nitric acid, acetic acid
5) Body material: Wcb, wc6, wc9, cf8, cf8m, cf3, cf3m, SS316, SS304 etc.
6) Connection: FF, RF, RTJ.

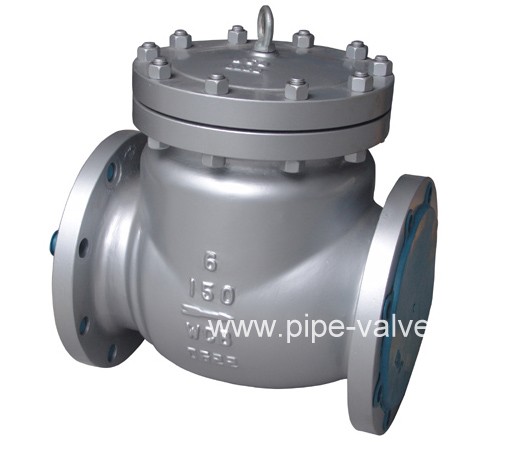

Check Valve Features & Specifications
Design & Manufacture: API6D, ANSI B16.34, BS1868
Bolted Bonnet, Swing Type Disc, Threaded or Welded Seat Ring of Check Valve
Back-seating, Renewable Seat Ring
Check Valve is available in Full Port Or Reduced Bore
Size Range of Check Valve: 2" to 48"N. B.
Pressure Ratings: ANSI 150, 300, 600, 900
Check Valve End Connections: Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections.
Materials of Check Valve: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions
Actuations: Manual
To MR 0175 and MR 103 Upon Request
